Multitech Control Systems provides Cold Chain Industries, Processing Industries, Ceramic Industries,
Automation System, Energy Monitoring System in Ahmedabad,Gujarat INDIA.- Economic Datalogger(1.0) - Ch (EDL-1)

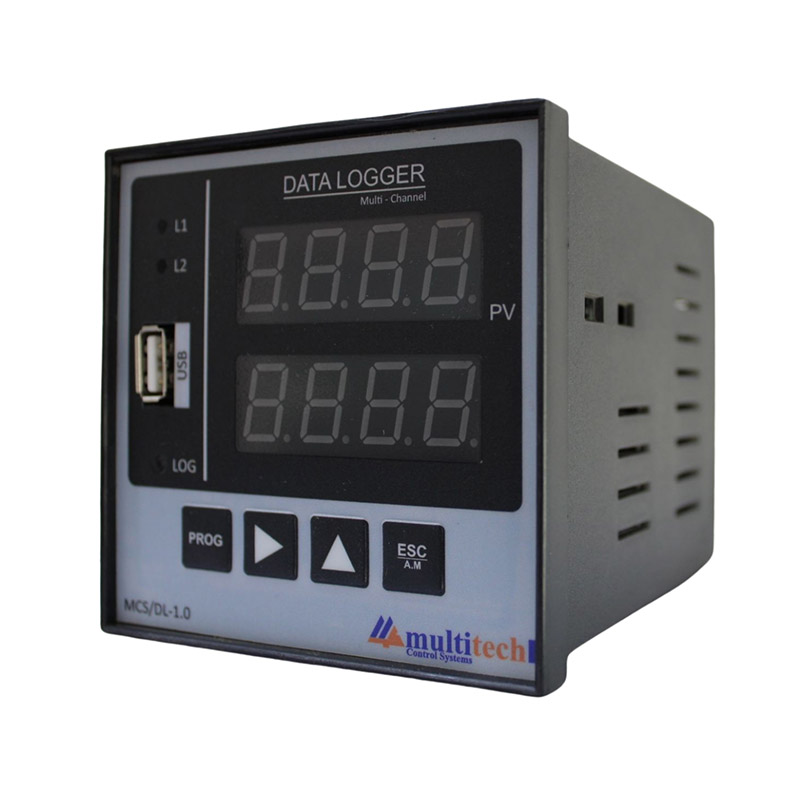

The MCS-DL-1.0 data logger is a cost-effective solution for temperature measurement and recording. It features 4 and 8 channel universal input support and is designed to be user-friendly without the need for additional software or complex procedures. By connecting a USB drive, the device starts logging data according to user-defined time intervals and generates data files directly on the drive. The recorded data can be easily converted to text or CSV files for further analysis.
Economic Datalogger(1.0) - 4Ch EDL-1.4
Parameters Description
Design
4-bit High end microcontroller with 12-bit ADC
Supply
230 VAC
Display
4 X 4 seven segment led display.
Upper Display
Upper display shows process temperature.
Lower Display
Lower display shows real time clock and Ch No.
Sensor
RTD PT- 100 / 4-20 MA
Input Channels
4 Nos.
Temperature Range
.-50.0°C to 150.0°C.
Resolution
0.1°C
Data Logging
Data logging through USB PEN DRIVE with settable LOG INTERVAL.
Memory
Depends on USB PEN DRIVE capacity (2GB pen drive = > 1month)
WARRANTY
12 Months Manufacturer Warranty
Economic Datalogger(1.0) - 8Ch EDL-1.8
Parameters Description
Design
4-bit High end microcontroller with 12-bit ADC
Supply
230 VAC
Display
4 X 4 seven segment led display.
Upper Display
Upper display shows process temperature.
Lower Display
Lower display shows real time clock and Ch No.
Sensor
RTD PT- 100 / 4-20 MA
Input Channels
8 Nos.
Temperature Range
.-50.0°C to 150.0°C.
Resolution
0.1°C
Data Logging
Data logging through USB PEN DRIVE with settable LOG INTERVAL.
Memory
Depends on USB PEN DRIVE capacity (2GB pen drive = > 1month)
WARRANTY
12 Months Manufacturer Warranty
Click here for download :
