Multitech Control Systems provides Cold Chain Industries, Processing Industries, Ceramic Industries,
Automation System, Energy Monitoring System in Ahmedabad,Gujarat INDIA.- Ethylene Sensor (GSE-3.0)
Ethylene transmitters are commonly used in agricultural and horticultural applications to monitor the ethylene levels in fruit storage facilities, greenhouses, and other growing environments. By monitoring ethylene levels, growers can optimize fruit ripening, reduce spoilage, and improve crop yields. They can also be used in research settings to study the effects of ethylene on plant growth and development.

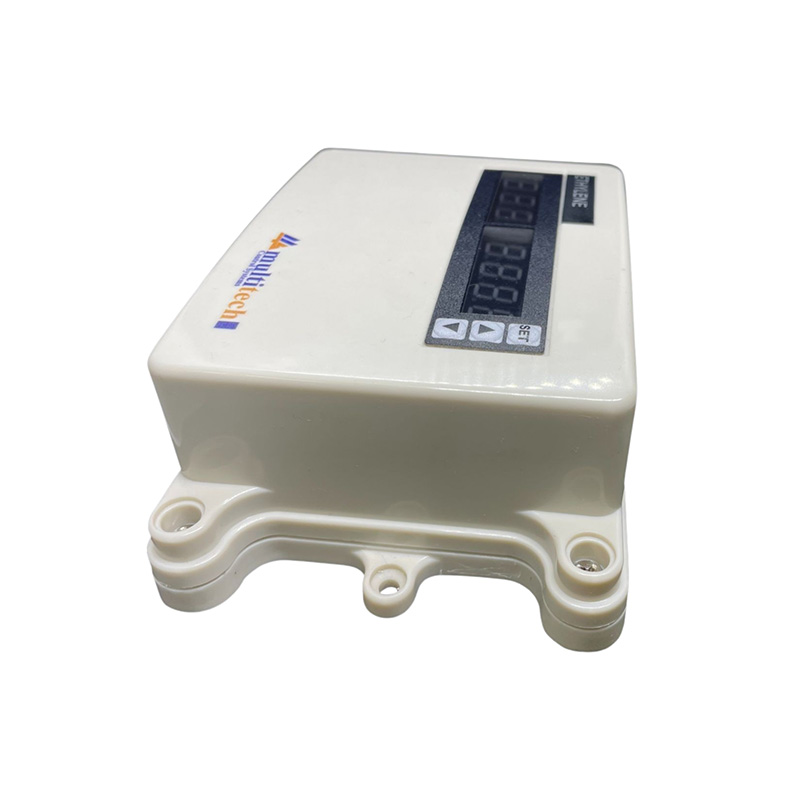

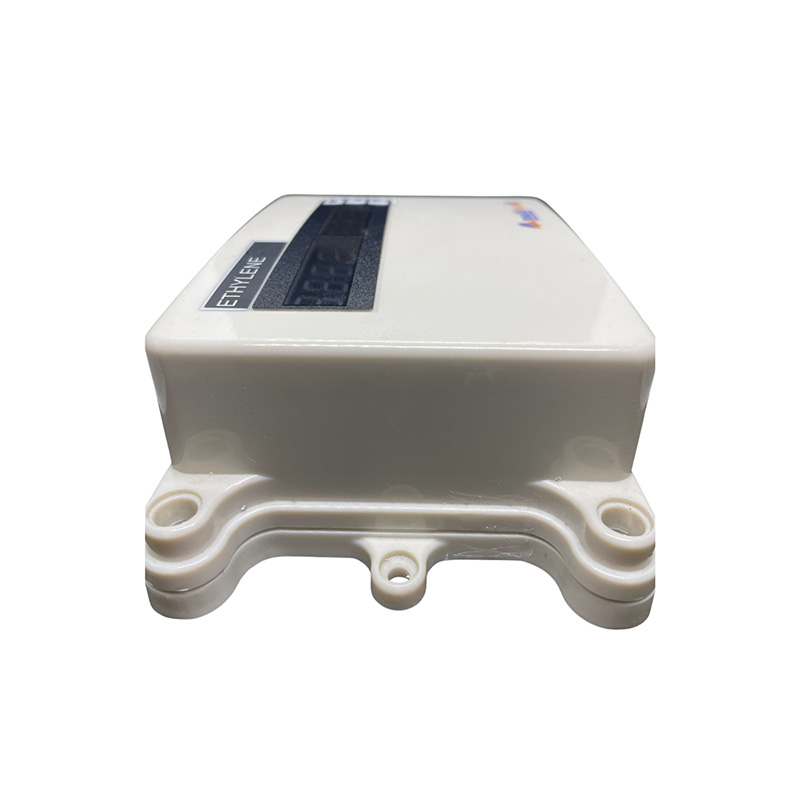

The GSE-3.0 Gas transmitter is a device that is designed to detect ethylene gas in the air with high sensitivity. It can detect concentrations of ethylene gas as low as 20 parts per million (ppm) in the air, making it an ideal tool for monitoring ethylene levels in fruit cold storage environments.
Parameters Description
Detection Gas
C2H4 (Ethylene)
Display
Digital Display 7 Segment
Detection Range
0-1500 ppm
Sensor Type
Semi –Conductor
Sensitivity
0.04 +/- 0.012 uA/ppm
Cross Sensitivity with other gases than target gas
Methane , Carbon- monoxide Isobutene ,n-Hexane Benzene Ethanol, Acetone
Filter
Filtering Sox, NOx and H2S
Resolution
50 ppm
Temperature Range
-15°C to 50°C
Pressure Range
Standard atmosphere +/- 10%
Response Time (T90)
<50s
Humidity Range
15%-90% RH
Power Supply
18-24 Vdc( reverse polarity protected)
Power consumption
Semiconductor sensor: 35mA, max. 0.85 VA
Output
Proportional, 4 – 20 mA, load ≤ 500 ? overload
Ethylene transmitters detect and provide real-time measurements of ethylene gas levels in the environment.
They are utilized in various industries, including agriculture, food storage, and horticulture.
The transmitters incorporate specialized sensors designed for accurate ethylene gas detection.
Some ethylene transmitters may include a display for easy access to current ethylene gas readings.
Additional features can include data logging, alarm notifications, and compatibility with control systems.
Click here for download :
