Parameters	Description

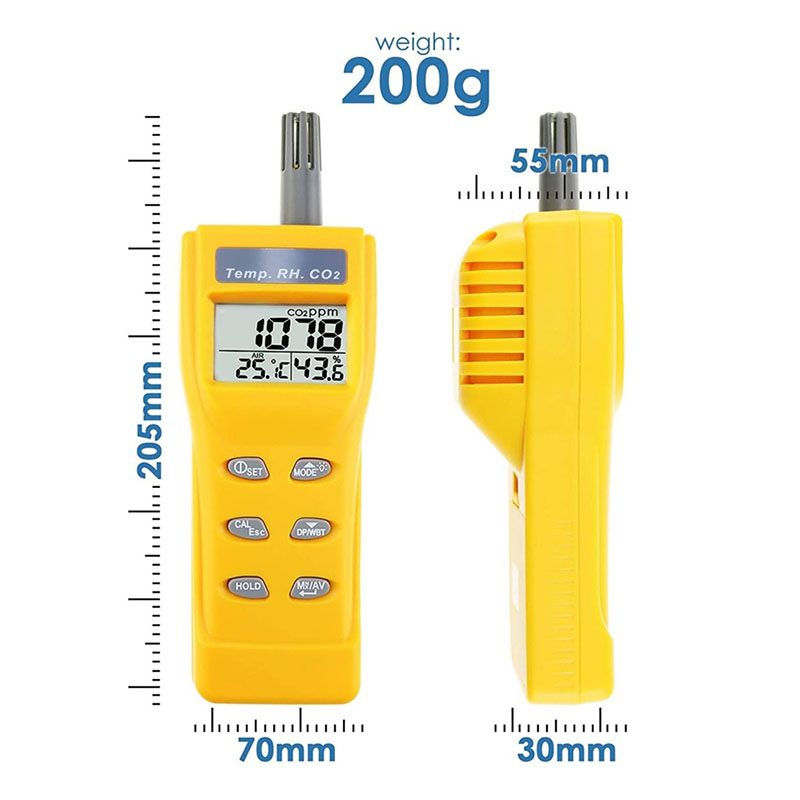

Meter Size	205(L) x 70(W) x 56(H) (in mm)

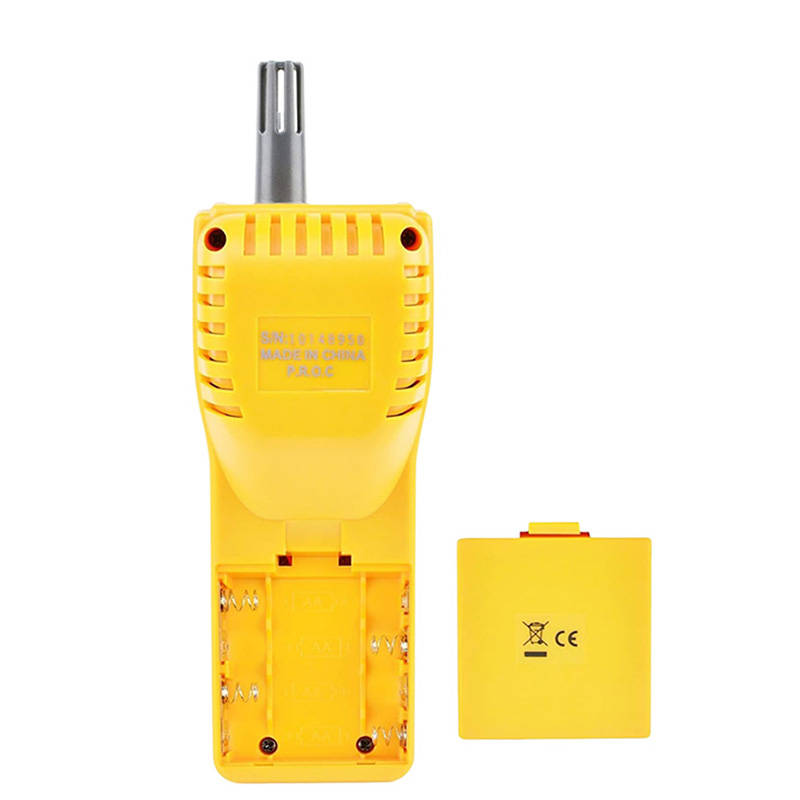

Supply	AA x 4 PCS
LCD Size	44(L) x 26(W)mm
Battery Life	> 24 Hours (Alkaline Battery)
Weight	200g
Sensor	RTD PT- 100
CO2 Range	0 to 9999 ppm
CO2 Resolution	1 ppm
CO2 Accuracy	± 50 ppm ± 5% of Reading
CO2 Response Time	30 Seconds (90% step change)
Humidity Range	0.1 to 99.9% RH
Humidity Resolution	0.1% RH
Humidity Accuracy	± 3% RH (at 25ºC, 10 to 90% RH)
Humidity Response Time	10 mins
Air Temperature Range	-10 ºC to 60 ºC
Air Temperature Accuracy	± 0.6 ºC
Air Temperature Response	2 min (90% step change)

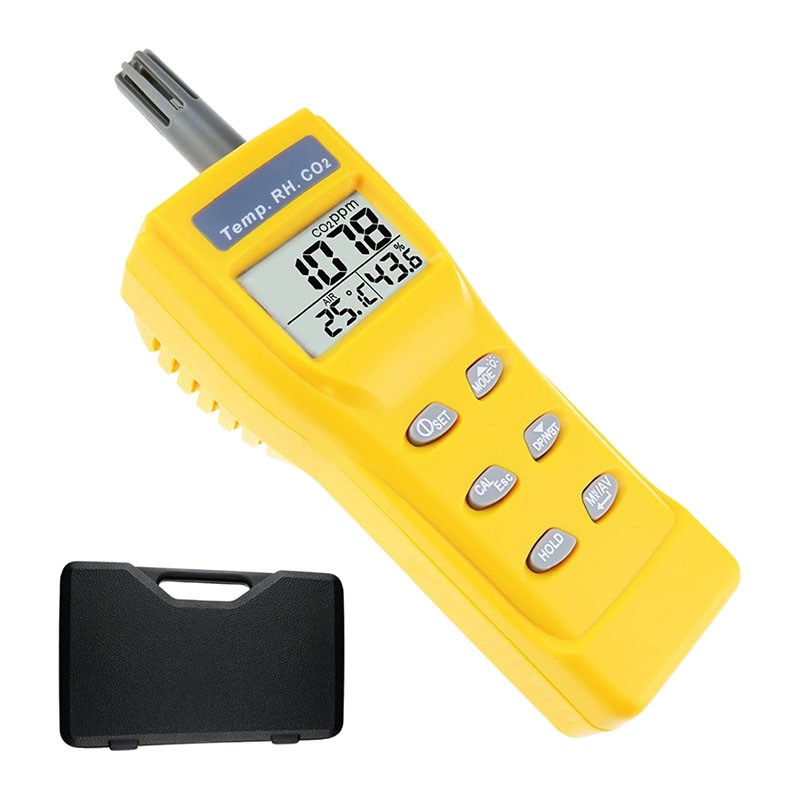

• Portable light weight handheld meter
• Lcd display
• Alarm for high co2 level
• Auto calibration
• Monitoring & analysis allows continuous monitoring of co2, rh & temperature level. Data output to pc every 2 seconds.

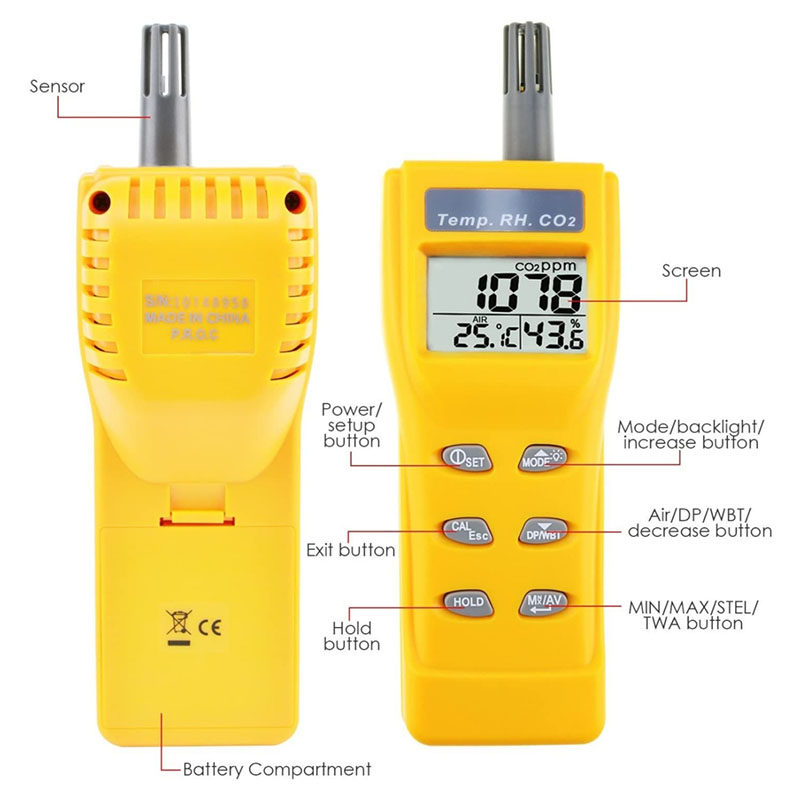

• Multiple measurement displays at once- co2, temperature, and relative humidity readings are all shown on the lcd display at the same time
• Normal/ max/ min/ average (15mins/ 8hrs) mode- it can show not only the normal, maximum and minimum co2 readings but also the weighted average co2 readings in the past 15mins (stel mode) and 8 hours (twa mode).
• Audible co2 sound- the alarm beeps when the co2 level exceeds the preset value. The alarm threshold is adjustable.
• Accuracy: co2: 0~2000ppm, ±50ppm or ±5% of the reading; above 2000ppm, ±10% of the reading
